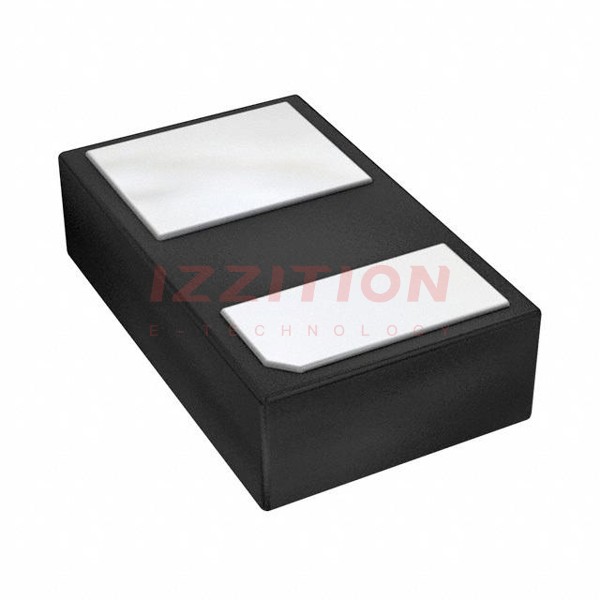

| Part Number | SDM2U20CSP-7 | SDM2U30CSP-7 | SDM1U20CSP-7 | SDM2A20CSP-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 30 V | 20 V | 20 V |
| Current - Average Rectified (Io) | 2A | 2A | 1A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 470 mV @ 2 A | 480 mV @ 2 A | 440 mV @ 1 A | 530 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 150 µA @ 20 V | 150 µA @ 30 V | 100 µA @ 20 V | 80 µA @ 20 V |
| Capacitance @ Vr, F | 115pF @ 4V, 1MHz | 110pF @ 4V, 1MHz | 76pF @ 4V, 1MHz | 70pF @ 5V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 2-XDFN | 2-XDFN | 2-XDFN |
| Supplier Device Package | X3-WLB1608-2 | X3-WLB1608-2 | X3-WLB1406-2 | X3-WLB1406-2 |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
