Diodes Incorporated-SDM1M40LP8-7 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	660 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	8.4 ns
Current - Reverse Leakage @ Vr:	20 µA @ 40 V
Capacitance @ Vr, F:	25pF @ 5V, 1MHz
Mounting Type:	Surface Mount

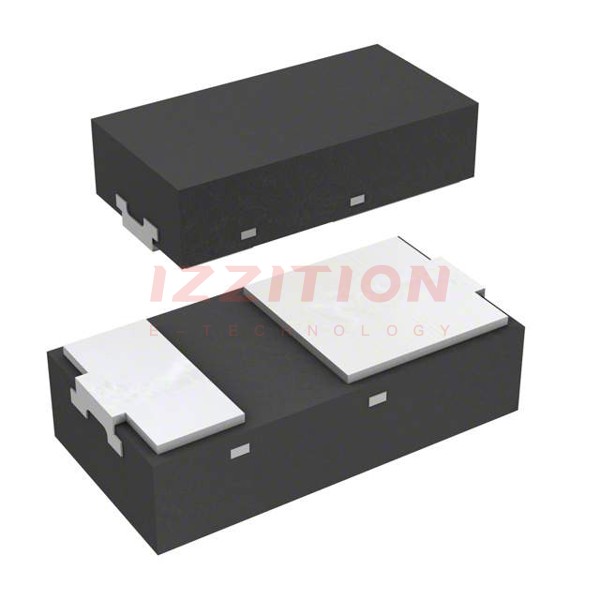

Package / Case:	2-UFDFN
Supplier Device Package:	U-DFN1608-2
Operating Temperature - Junction:	-65°C ~ 150°C

Diodes Incorporated SDM1M40LP8-7
