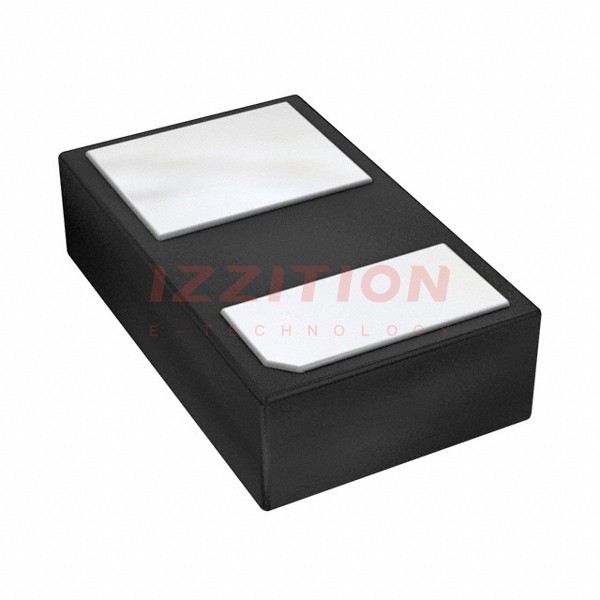

| Part Number | SDM05U20CSP-7 | SDM05U40CSP-7 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 40 V |
| Current - Average Rectified (Io) | 500mA | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 430 mV @ 500 mA | 460 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 55 µA @ 20 V | 75 µA @ 40 V |
| Capacitance @ Vr, F | 46pF @ 4V, 1MHz | 35pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 2-XDFN |
| Supplier Device Package | X3-WLB1006-2 | X3-WLB1006-2 |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C |
