Diodes Incorporated-SDM05A30CP3-7 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	500mA
Voltage - Forward (Vf) (Max) @ If:	710 mV @ 500 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	4.8 ns
Current - Reverse Leakage @ Vr:	9 µA @ 30 V
Capacitance @ Vr, F:	7pF @ 10V, 1MHz
Mounting Type:	Surface Mount

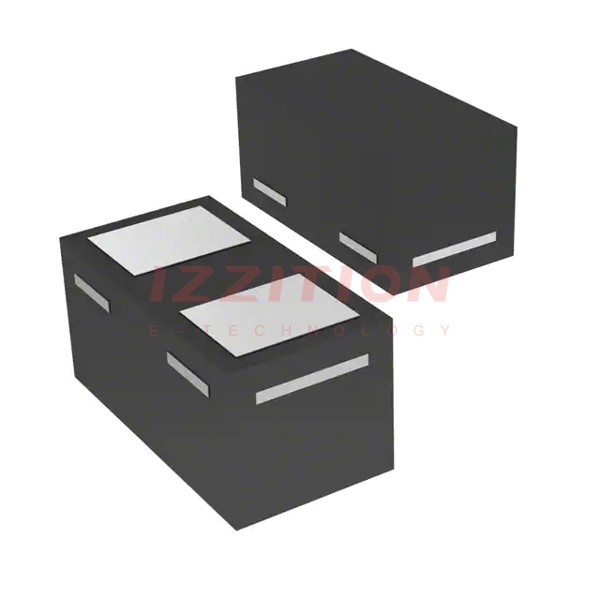

Package / Case:	2-XDFN
Supplier Device Package:	X3-WLB0603-2
Operating Temperature - Junction:	-55°C ~ 150°C

Diodes Incorporated SDM05A30CP3-7
