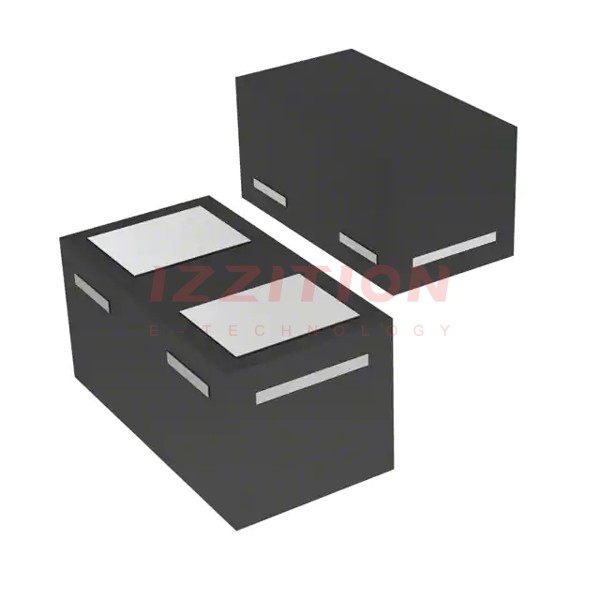

| Part Number | SDM02M30LP3-7B | SDM02U30LP3-7B | SDM02M30CLP3-7B |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 100mA | 100mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 10 mA | 370 mV @ 10 mA | 700 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1.6 ns | - | 2 ns |
| Current - Reverse Leakage @ Vr | 400 nA @ 30 V | 4 µA @ 30 V | 400 µA @ 30 V |
| Capacitance @ Vr, F | 2.7pF @ 5V, 1MHz | - | 3.3pF @ 5V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 3-XFDFN |
| Supplier Device Package | 2-X3-DFN0603 | X3-DFN0603-2 | X2-DFN1006-3 |
| Operating Temperature - Junction | -55°C ~ 150°C | -65°C ~ 150°C | -55°C ~ 150°C |
