Diodes Incorporated-SD103B-F - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	350mA (DC)
Voltage - Forward (Vf) (Max) @ If:	600 mV @ 200 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	10 ns
Current - Reverse Leakage @ Vr:	5 µA @ 20 V
Capacitance @ Vr, F:	50pF @ 0V, 1MHz
Mounting Type:	Through Hole
Package / Case:	DO-204AH, DO-35, Axial
Supplier Device Package:	DO-35
Operating Temperature - Junction:	125°C (Max)

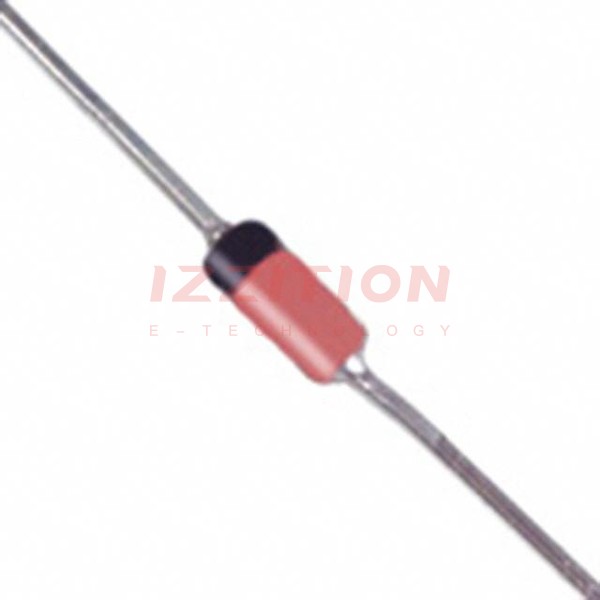

Diodes Incorporated SD103B-F
