Diodes Incorporated-SD101A-A-F - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io):	15mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1 V @ 15 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	1 ns
Current - Reverse Leakage @ Vr:	200 nA @ 50 V
Capacitance @ Vr, F:	2pF @ 0V, 1MHz
Mounting Type:	Through Hole
Package / Case:	DO-204AH, DO-35, Axial
Supplier Device Package:	DO-35
Operating Temperature - Junction:	-65°C ~ 175°C

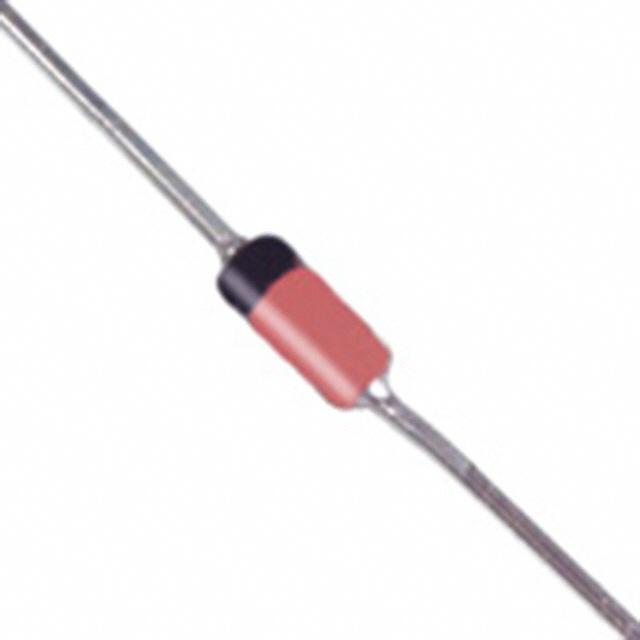

Diodes Incorporated SD101A-A-F
