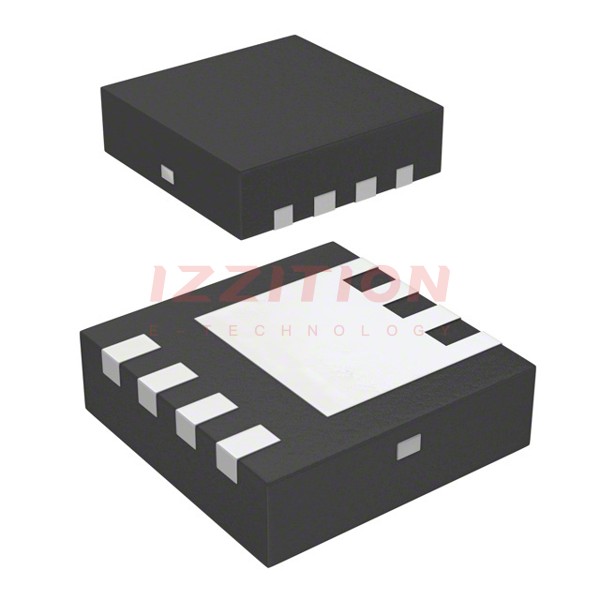

| Part Number | SBRT6U45LP-7 | SBRT2U45LP-7 | SBRT4U45LP-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) | 6A | 2A | 4A |
| Voltage - Forward (Vf) (Max) @ If | 520 mV @ 6 A | 550 mV @ 2 A | 520 mV @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 150 µA @ 45 V | 100 µA @ 45 V | 100 µA @ 45 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerUDFN | 3-UDFN | 2-UDFN |
| Supplier Device Package | U-DFN3030-8 | X1-DFN1411-3 | U-DFN2020-2 |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
