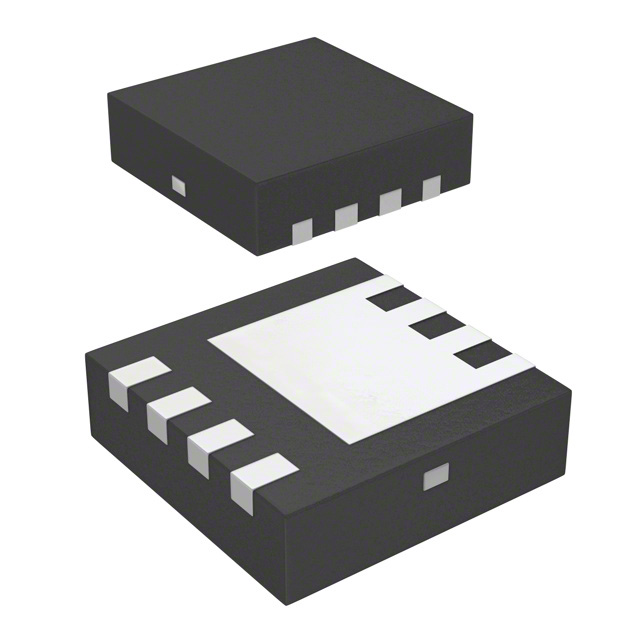

| Part Number | SBRT6U10LP-7 | SBRT6U20LP-7 | SBRT4U10LP-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 10 V | 20 V | 10 V |
| Current - Average Rectified (Io) | 6A | 6A | 4A |
| Voltage - Forward (Vf) (Max) @ If | 480 mV @ 6 A | 450 mV @ 6 A | 500 mV @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 300 µA @ 10 V | 250 µA @ 20 V | 200 µA @ 10 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerUDFN | 8-PowerUDFN | 2-UDFN |
| Supplier Device Package | U-DFN3030-8 | U-DFN3030-8 | U-DFN2020-2 |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
