| Part Number | SBRT4U60LP-7 | SBRT4U10LP-7 | SBRT4U30LP-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Active |
| Diode Type | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 10 V | 30 V |
| Current - Average Rectified (Io) | 4A | 4A | 4A |
| Voltage - Forward (Vf) (Max) @ If | 520 mV @ 4 A | 500 mV @ 4 A | 500 mV @ 4 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 150 µA @ 60 V | 200 µA @ 10 V | 100 µA @ 30 V |
| Capacitance @ Vr, F | 180pF @ 5V, 1MHz | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

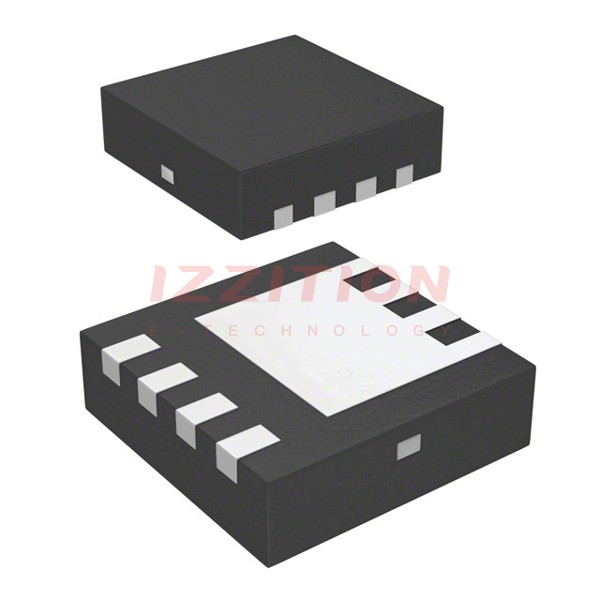

| Package / Case | 8-PowerUDFN | 2-UDFN | 2-UDFN |
| Supplier Device Package | U-DFN3030-8 | U-DFN2020-2 | U-DFN2020-2 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 150°C | -55°C ~ 150°C |
