Diodes Incorporated-SBR8A45SP5-13 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Super Barrier
Voltage - DC Reverse (Vr) (Max):	45 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	600 mV @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	300 µA @ 45 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount

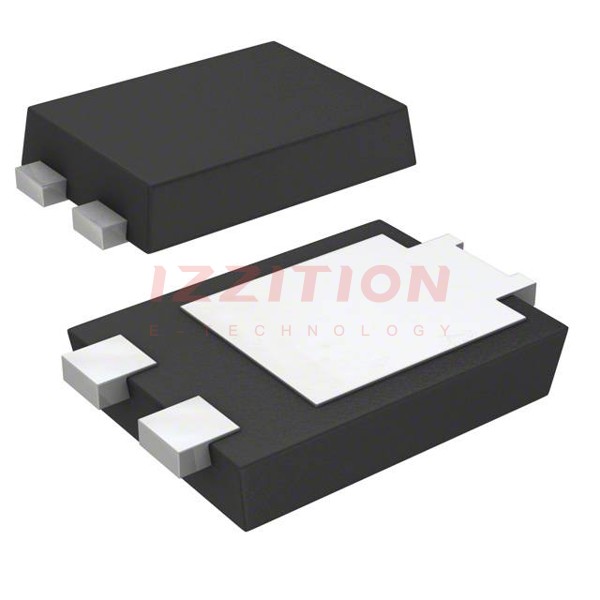

Package / Case:	PowerDI™ 5
Supplier Device Package:	PowerDI™ 5
Operating Temperature - Junction:	-65°C ~ 150°C

Diodes Incorporated SBR8A45SP5-13
