Diodes Incorporated-SBR4U130LP-7 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Super Barrier
Voltage - DC Reverse (Vr) (Max):	130 V
Current - Average Rectified (Io):	4A
Voltage - Forward (Vf) (Max) @ If:	750 mV @ 4 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	100 µA @ 130 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	8-PowerUDFN
Supplier Device Package:	U-DFN3030-8
Operating Temperature - Junction:	-65°C ~ 150°C

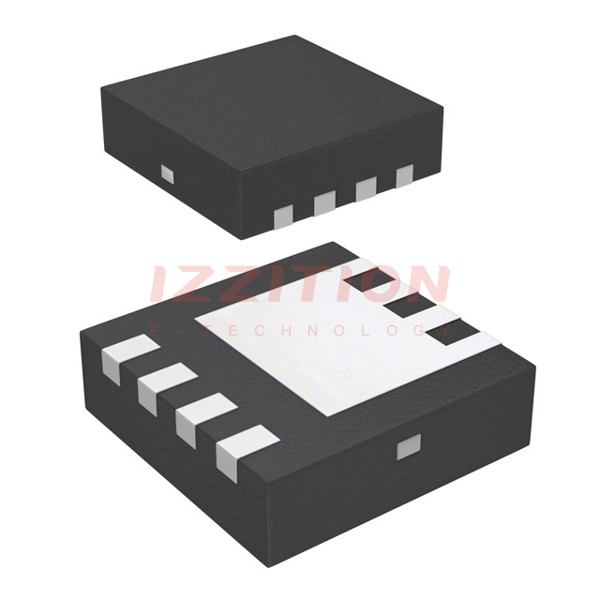

Diodes Incorporated SBR4U130LP-7
