Please send RFQ , we will respond immediately.

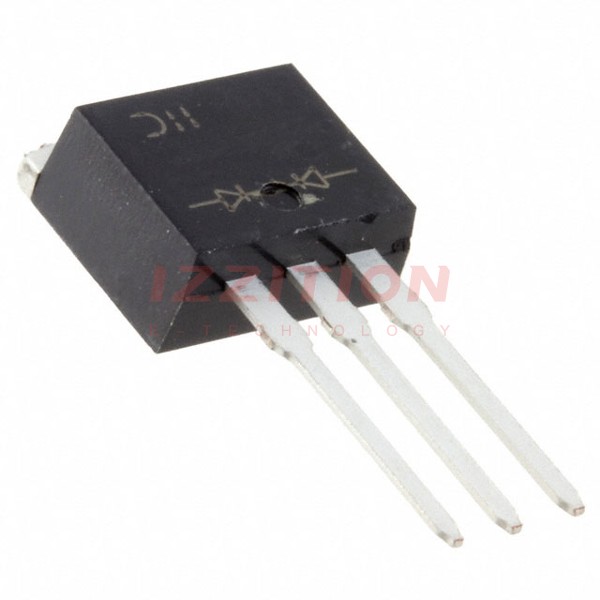

| Part Number | SBR40U100CTE | SBR40U120CTE | SBR40U100CT |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 120 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 20A | 20A | 40A |
| Voltage - Forward (Vf) (Max) @ If | 780 mV @ 20 A | 860 mV @ 20 A | 720 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 100 V | 500 µA @ 120 V | 50 µA @ 100 V |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 |
| Supplier Device Package | TO-262 | TO-262 | TO-220-3 |
