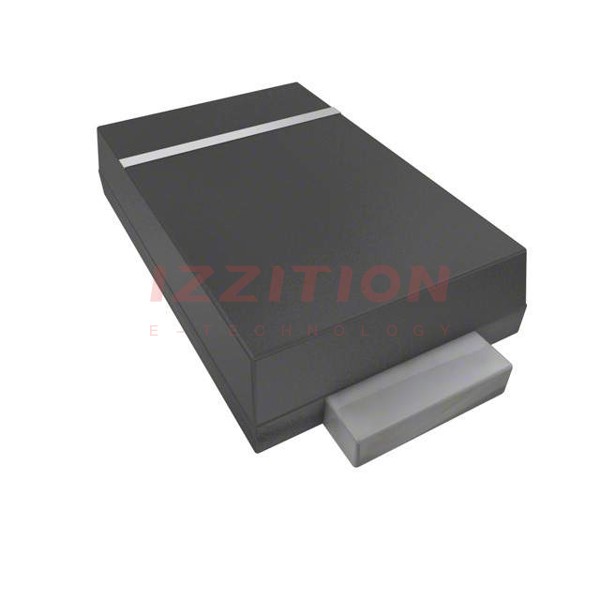

| Part Number | SBR3A40SAF-13 | SBR3A40SAQ-13 | SBR3A40SA-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Diode Type | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 3 A | 480 mV @ 3 A | 500 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 400 µA @ 40 V | 400 µA @ 40 V | 400 µA @ 40 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | SMAF | SMA | SMA |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
