Diodes Incorporated-SBR2U10LP-13 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Super Barrier
Voltage - DC Reverse (Vr) (Max):	10 V
Current - Average Rectified (Io):	2A
Voltage - Forward (Vf) (Max) @ If:	460 mV @ 2 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	60 ns
Current - Reverse Leakage @ Vr:	2 mA @ 10 V
Capacitance @ Vr, F:	102pF @ 5V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	3-UDFN
Supplier Device Package:	3-X1-DFN1411
Operating Temperature - Junction:	-65°C ~ 150°C

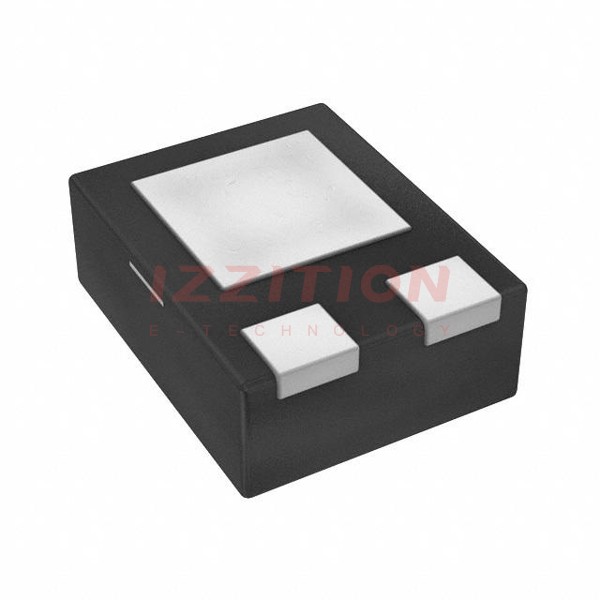

Diodes Incorporated SBR2U10LP-13
