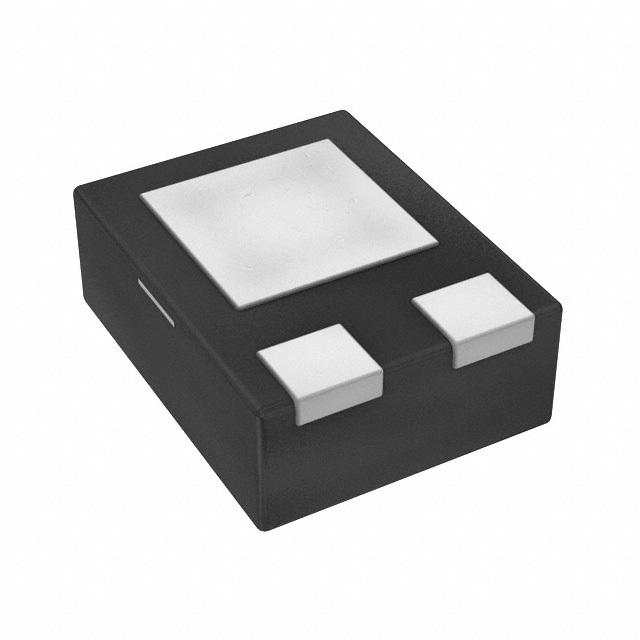

| Part Number | SBR2U100LP-7 | SBR3U100LP-7 | SBR2U10LP-7 | SBR02U100LP-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete | Active |
| Diode Type | Super Barrier | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 10 V | 100 V |
| Current - Average Rectified (Io) | 1.5A | 3A | 2A | 250mA |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 1.5 A | 790 mV @ 3 A | 460 mV @ 2 A | 800 mV @ 200 mA |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | 60 ns | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V | 200 µA @ 100 V | 2 mA @ 10 V | 1 µA @ 75 V |
| Capacitance @ Vr, F | - | - | 102pF @ 5V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-UDFN | 8-PowerUDFN | 3-UDFN | 0402 (1006 Metric) |
| Supplier Device Package | X1-DFN1411-3 | U-DFN3030-8 | X1-DFN1411-3 | X1-DFN1006-2 |
| Operating Temperature - Junction | -55°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
