Diodes Incorporated-SBR1U30SV-7 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	SBR1U30SV-7	SBR130SV-7
Manufacturer	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Active
Diode Type	Super Barrier	Super Barrier
Voltage - DC Reverse (Vr) (Max)	30 V	30 V
Current - Average Rectified (Io)	1A	1A
Voltage - Forward (Vf) (Max) @ If	510 mV @ 1 A	560 mV @ 1 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-	-
Current - Reverse Leakage @ Vr	150 µA @ 30 V	100 µA @ 30 V
Capacitance @ Vr, F	-	-
Mounting Type	Surface Mount	Surface Mount
Package / Case	SOT-563, SOT-666	SOT-563, SOT-666
Supplier Device Package	SOT-563	SOT-563
Operating Temperature - Junction	-65°C ~ 150°C	-65°C ~ 150°C

Diode Type:	Super Barrier
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	510 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	150 µA @ 30 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SOT-563
Operating Temperature - Junction:	-65°C ~ 150°C

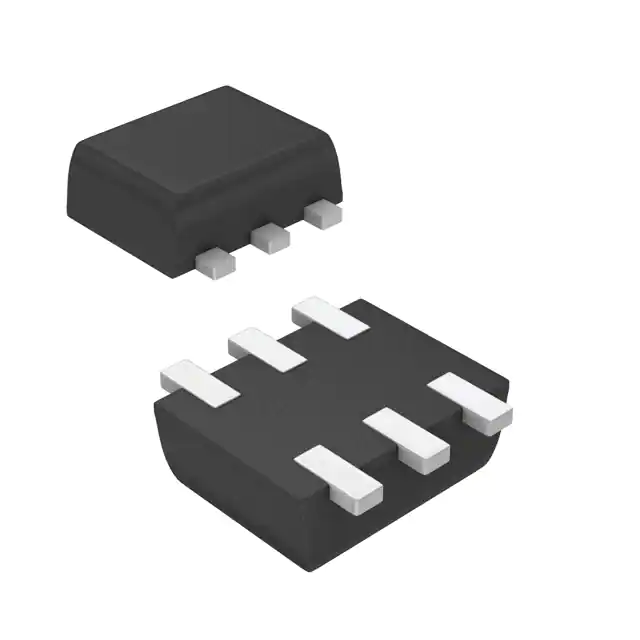

Diodes Incorporated SBR1U30SV-7
