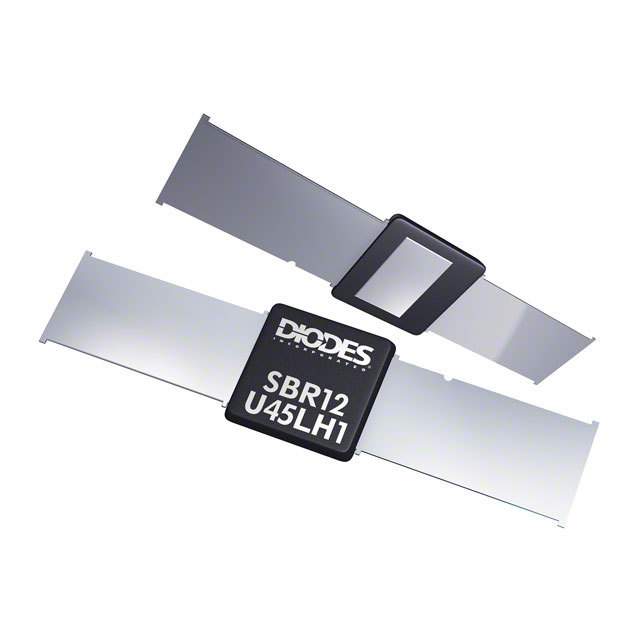

| Part Number | SBR12U45LH1-13 | SBR12U45LH1-13R | SBR12E45LH1-13 | SBR12U45LH-13 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Obsolete |
| Diode Type | Super Barrier | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) | 12A | 12A | 12A | 12A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 12 A | 500 mV @ 12 A | 520 mV @ 12 A | 500 mV @ 12 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 300 µA @ 45 V | 300 µA @ 45 V | 300 µA @ 45 V | 300 µA @ 45 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | PowerDI™ 5SP | PowerDI™ 5SP | PowerDI™ 5SP | PowerDI™ 5SP |
| Supplier Device Package | PowerDI5SP™ | PowerDI5SP™ | PowerDI5SP™ | PowerDI5SP™ |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
