Please send RFQ , we will respond immediately.

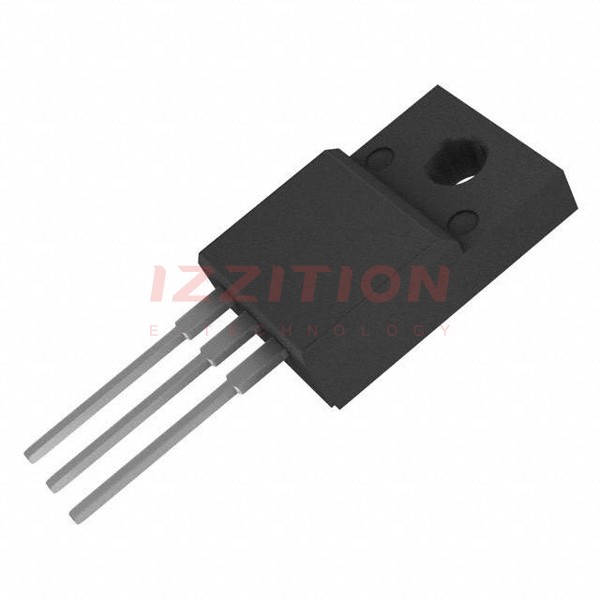

| Part Number | SBR10U100CTFP | SBR10U150CTFP | SBR10U200CTFP | SBR10U300CTFP | SBR20U100CTFP | SBR10100CTFP |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Super Barrier | Super Barrier | Super Barrier | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 150 V | 200 V | 300 V | 100 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 5A | 5A | 5A | 5A | 10A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 670 mV @ 5 A | 790 mV @ 5 A | 820 mV @ 5 A | 920 mV @ 10 A | 700 mV @ 10 A | 800 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | 30 ns | 35 ns | - | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 100 V | 200 µA @ 150 V | 200 µA @ 200 V | 200 µA @ 300 V | 500 µA @ 100 V | 100 µA @ 100 V |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AB | ITO-220AB | ITO-220AB | ITO-220AB | ITO-220AB | ITO-220AB |
