| Part Number | SBR10A45SP5-13 | SBR10U45SP5-13 | SBR10A45SP5Q-13 | SBR12A45SP5-13 | SBR1045SP5-13 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Super Barrier | Super Barrier | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) | 10A | 10A | 10A | 12A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 10 A | 470 mV @ 10 A | 530 mV @ 10 A | 600 mV @ 12 A | 550 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 400 µA @ 45 V | 300 µA @ 45 V | 400 µA @ 45 V | 300 µA @ 45 V | 450 µA @ 45 V |
| Capacitance @ Vr, F | - | - | - | 1000pF @ 4V, 1MHz | 500pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

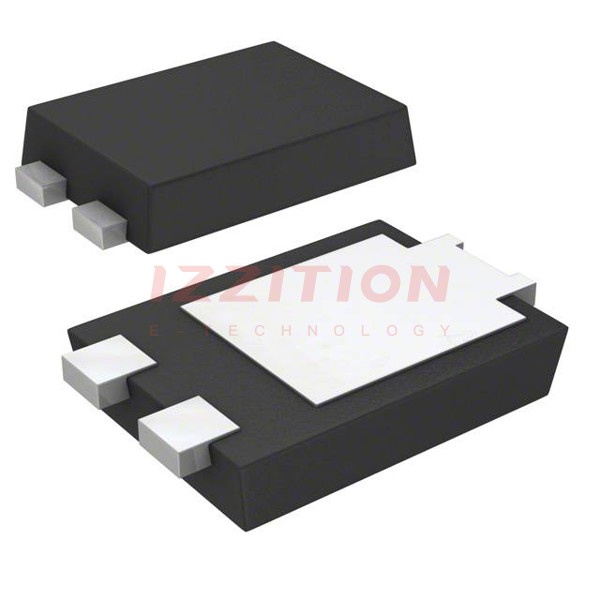

| Package / Case | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 |
| Supplier Device Package | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 175°C | -65°C ~ 150°C |
