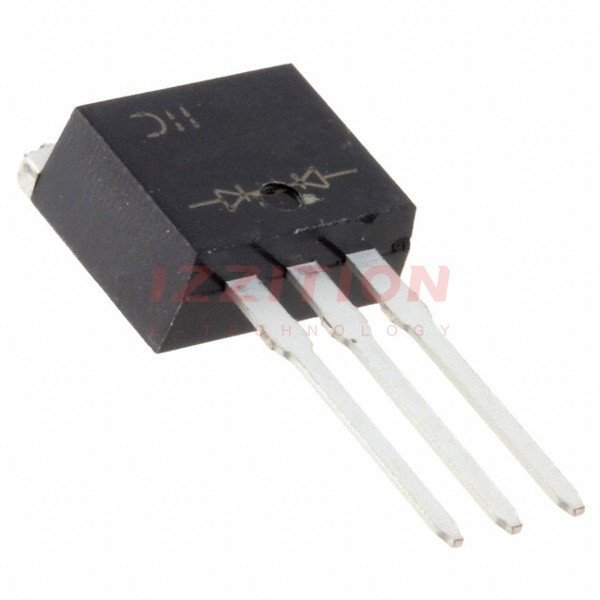

| Part Number | SBR10150CTE | SBR10150CTL | SBR10150CT |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | SMC Diode Solutions | SMC Diode Solutions |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Super Barrier | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 150 V | 150 V | 150 V |
| Current - Average Rectified (Io) (per Diode) | 5A | 10A | - |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 5 A | 980 mV @ 5 A | 930 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 250 µA @ 150 V | 10 mA @ 150 V | 1 mA @ 150 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-262 | TO-220AB | TO-220AB |
