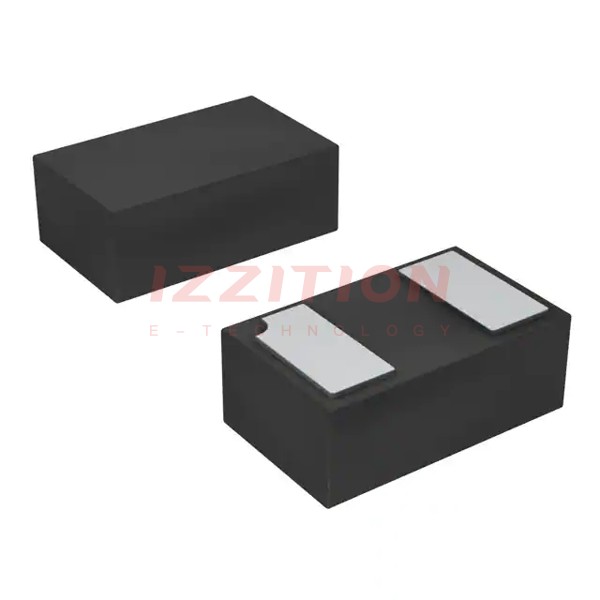

| Part Number | SBR05U20LPS-7 | SBR07U20LPS-7 | SBR05U20LP-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete |
| Diode Type | Super Barrier | Super Barrier | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 20 V | 20 V |
| Current - Average Rectified (Io) | 500mA | 700mA | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 500 mA | 550 mV @ 700 mA | 500 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 20 V | 50 µA @ 20 V | 50 µA @ 20 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | DFN1006H4-2 | X2-DFN1006-2 | X1-DFN1006-2 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
