| Part Number | SBR0240LPW-7B | SBR0240LPWQ-7B |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Diode Type | Standard | Super Barrier |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V |
| Current - Average Rectified (Io) | 200mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | - | 590 mV @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3.8 ns | 3.8 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 40 V | 10 µA @ 40 V |
| Capacitance @ Vr, F | 8pF @ 5V, 1MHz | 8pF @ 5V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |

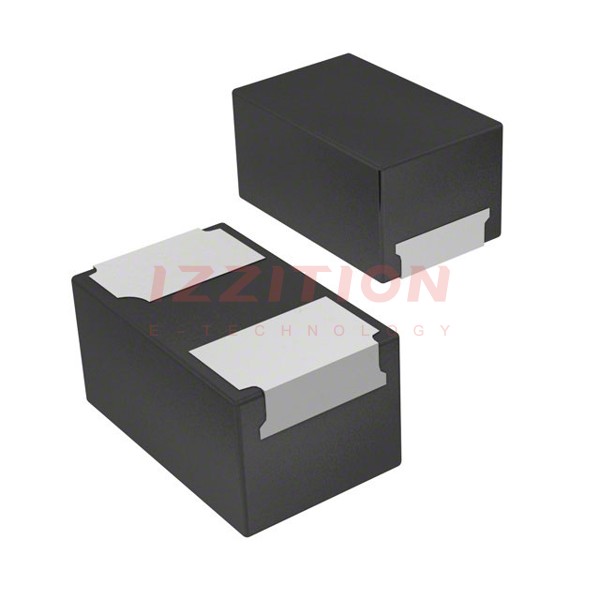

| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | X1-DFN1006-2 | X1-DFN1006-2 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C |
