| Part Number | SBM340-13 | SBM540-13 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V |
| Current - Average Rectified (Io) | 3A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 3 A | 520 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V | 500 µA @ 40 V |
| Capacitance @ Vr, F | 180pF @ 4V, 1MHz | 250pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |

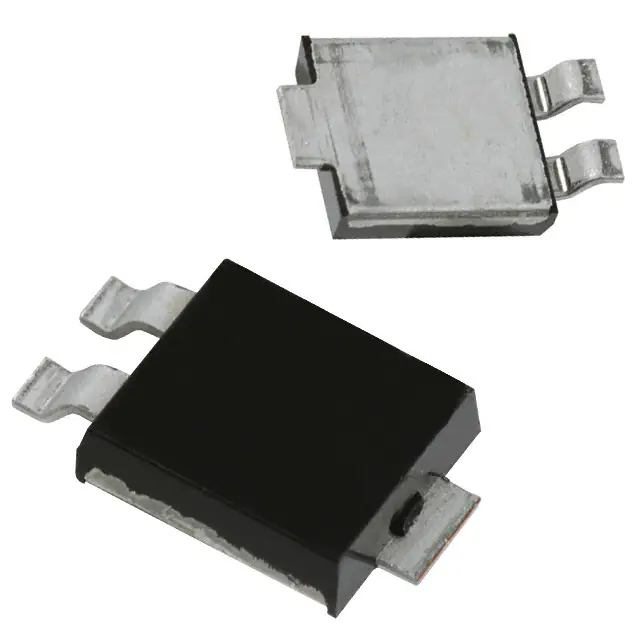

| Package / Case | Powermite®3 | Powermite®3 |
| Supplier Device Package | Powermite 3 | Powermite 3 |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C |
