Diodes Incorporated-SBM1040-13-F - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	10A
Voltage - Forward (Vf) (Max) @ If:	510 mV @ 10 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	300 µA @ 35 V
Capacitance @ Vr, F:	700pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	Powermite®3
Supplier Device Package:	Powermite 3
Operating Temperature - Junction:	-65°C ~ 150°C

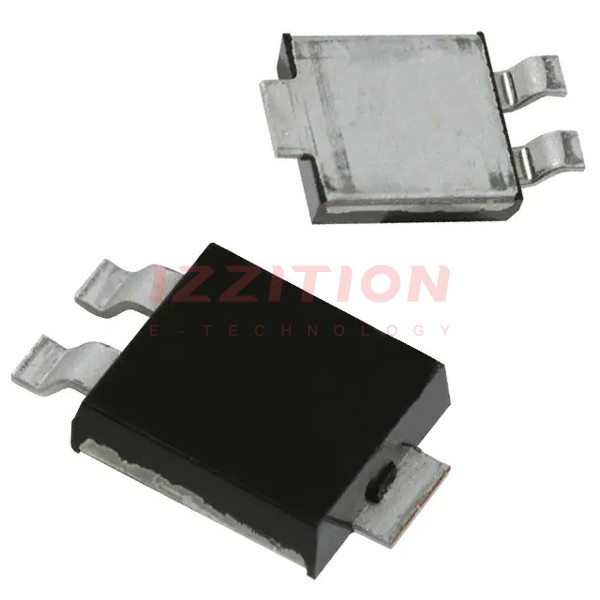

Diodes Incorporated SBM1040-13-F
