Diodes Incorporated-RDBF156U-13 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	RDBF156U-13	RDBF158U-13	RDBF151U-13	RDBF152U-13	RDBF154U-13
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	800 V	100 V	200 V	400 V
Current - Average Rectified (Io)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage - Forward (Vf) (Max) @ If	1.3 V @ 1.5 A	1.3 V @ 1.5 A	1.3 V @ 1.5 A	1.3 V @ 1.5 A	1.3 V @ 1.5 A
Current - Reverse Leakage @ Vr	5 µA @ 600 V	5 µA @ 800 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	4-SMD, Flat Leads	4-SMD, Flat Leads	4-SMD, Flat Leads	4-SMD, Flat Leads	4-SMD, Flat Leads
Supplier Device Package	DBF	DBF	DBF	DBF	DBF

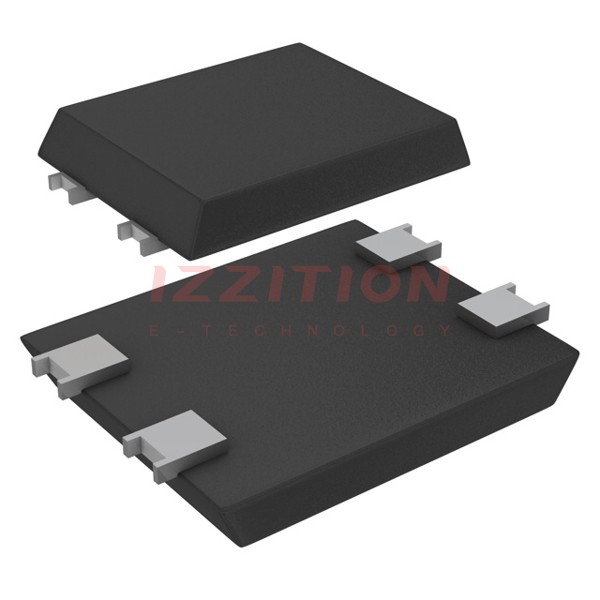

Diodes Incorporated RDBF156U-13

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	1.5 A
Voltage - Forward (Vf) (Max) @ If:	1.3 V @ 1.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 600 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Flat Leads
Supplier Device Package:	DBF
