Diodes Incorporated-RABF22-13 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	RABF22-13	RABF24-13	RABF26-13	RABF28-13
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	200 V	400 V	600 V	800 V
Current - Average Rectified (Io)	2 A	2 A	2 A	2 A
Voltage - Forward (Vf) (Max) @ If	1.3 V @ 2 A	1.3 V @ 2 A	1.3 V @ 2 A	1.3 V @ 2 A
Current - Reverse Leakage @ Vr	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V	5 µA @ 800 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing
Supplier Device Package	4-SOPA	4-SOPA	4-SOPA	4-SOPA

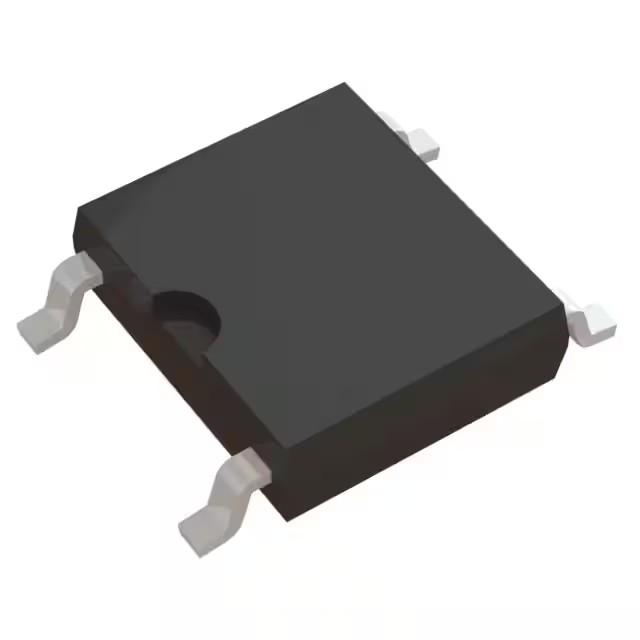

Diodes Incorporated RABF22-13

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	200 V
Current - Average Rectified (Io):	2 A
Voltage - Forward (Vf) (Max) @ If:	1.3 V @ 2 A
Current - Reverse Leakage @ Vr:	5 µA @ 200 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SOPA
