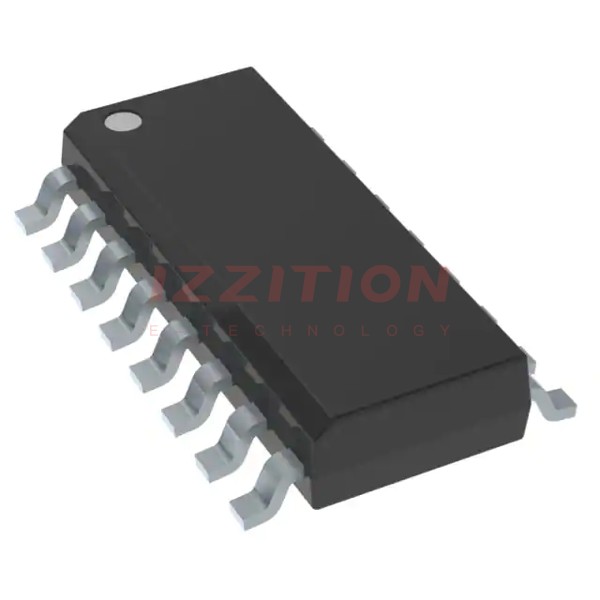

| Part Number | PS508WEX | PS509WEX | PS508LEX | PS508QEX |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | 8PST | 8PST | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 | 8:1 | 8:1 |
| Number of Circuits | 1 | 1 | 1 | 1 |
| On-State Resistance (Max) | 200Ohm | 200Ohm | 200Ohm | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.4Ohm | 2.4Ohm | 6Ohm | 2.4Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 36V, ±5V ~ 18V | 10V ~ 36V, ±5V ~ 18V | 10V ~ 36V, ±5V ~ 18V | 10V ~ 36V, ±5V ~ 18V |
| Voltage - Supply, Dual (V±) | 10V ~ 36V, ±5V ~ 18V | 10V ~ 36V, ±5V ~ 18V | 10V ~ 36V, ±5V ~ 18V | 10V ~ 36V, ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 210ns, 191ns | 210ns, 191ns | 210ns, 191ns | 210ns, 191ns |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 2pC | 2pC | 2pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 24pF | 5pF, 15pF | 5pF, 24pF | 5pF, 24pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA | 1nA |
| Crosstalk | -96dB @ 1MHz | -96dB @ 1MHz | -96dB @ 1MHz | -96dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC | 16-SOIC | 16-TSSOP | 16-QSOP |
