| Part Number | PS320CUAEX | PS323CUAEX | PS320CUAE |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 35Ohm | 35Ohm | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm | 800mOhm | 300mOhm |
| Voltage - Supply, Single (V+) | - | 2.5V ~ 16 V | - |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V | - | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns | 75ns, 50ns | 150ns, 100ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 8pC | 1pC | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

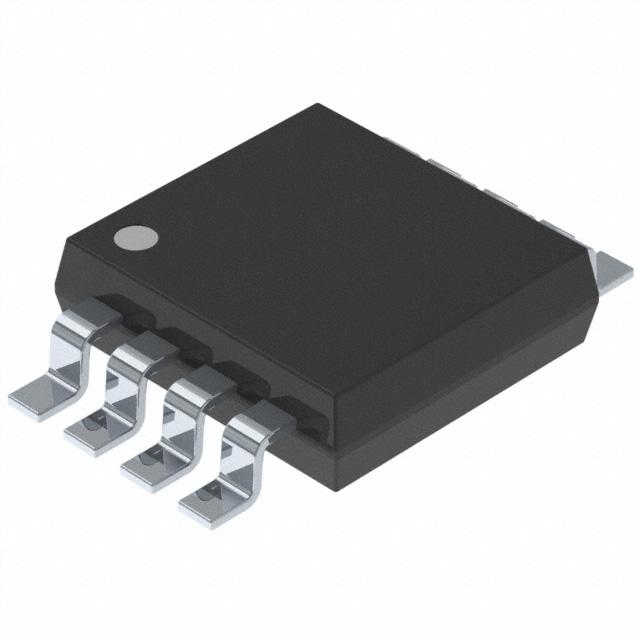

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-MSOP |
