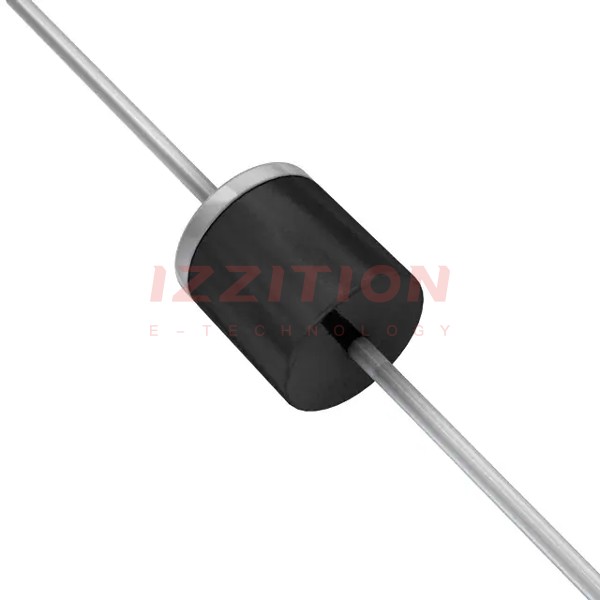

| Part Number | PR6005-T | PR1005-T | PR2005-T | PR3005-T | PR6001-T | PR6002-T | PR6003-T | PR6004-T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V | 50 V | 100 V | 200 V | 400 V |
| Current - Average Rectified (Io) | 6A | 1A | 2A | 3A | 6A | 6A | 6A | 6A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 6 A | 1.2 V @ 1 A | 1.2 V @ 2 A | 1.2 V @ 3 A | 1.2 V @ 6 A | 1.2 V @ 6 A | 1.2 V @ 6 A | 1.2 V @ 6 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns | 250 ns | 250 ns | 250 ns | 150 ns | 150 ns | 150 ns | 150 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 600 V | 10 µA @ 50 V | 10 µA @ 100 V | 10 µA @ 200 V | 10 µA @ 400 V |
| Capacitance @ Vr, F | 70pF @ 4V, 1MHz | 8pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | 140pF @ 4V, 1MHz | 140pF @ 4V, 1MHz | 140pF @ 4V, 1MHz | 140pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | R-6, Axial | DO-204AL, DO-41, Axial | DO-204AC, DO-15, Axial | DO-201AD, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial |
| Supplier Device Package | R-6 | DO-41 | DO-15 | DO-201AD | R-6 | R-6 | R-6 | R-6 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
