Please send RFQ , we will respond immediately.

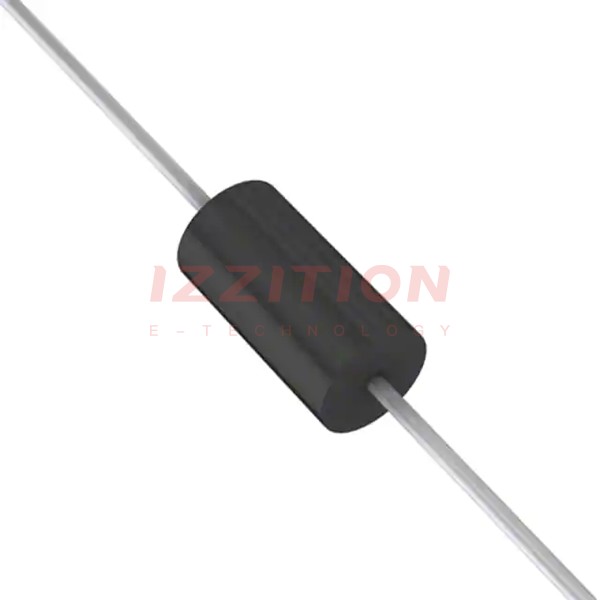

| Part Number | PR1506G-T | PR1507G-T | PR1006G-T | PR1501G-T | PR1502G-T | PR1503G-T | PR1504G-T | PR1505G-T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 800 V | 1000 V | 800 V | 50 V | 100 V | 200 V | 400 V | 600 V |
| Current - Average Rectified (Io) | 1.5A | 1.5A | 1A | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1.5 A | 1.3 V @ 1.5 A | 1.3 V @ 1 A | 1.3 V @ 1.5 A | 1.3 V @ 1.5 A | 1.3 V @ 1.5 A | 1.3 V @ 1.5 A | 1.3 V @ 1.5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns | 500 ns | 500 ns | 150 ns | 150 ns | 150 ns | 150 ns | 250 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V | 5 µA @ 1000 V | 5 µA @ 800 V | 5 µA @ 50 V | 5 µA @ 100 V | 5 µA @ 200 V | 5 µA @ 400 V | 5 µA @ 600 V |
| Capacitance @ Vr, F | 25pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 8pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 25pF @ 4V, 1MHz | 25pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AL, DO-41, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 | DO-15 | DO-41 | DO-15 | DO-15 | DO-15 | DO-15 | DO-15 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
