| Part Number | PI6LC48P0201AZHIE | PI6LC48P0201AZHIEX | PI6LC48P0301AZHIE | PI6LC48L0201AZHIE |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete | Active |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Main Purpose | Ethernet | Ethernet | Ethernet | Ethernet |
| Input | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal | LVCMOS, LVTTL, Crystal |
| Output | LVPECL | LVPECL | LVPECL | LVDS |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:2 | 2:2 | 2:3 | 2:2 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 170MHz | 170MHz | 680MHz | 170MHz |
| Voltage - Supply | 2.375V ~ 2.625V, 2.97V ~ 3.63V | 2.375V ~ 2.625V, 2.97V ~ 3.63V | 2.375V ~ 2.625V, 3.135V ~ 3.465V | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

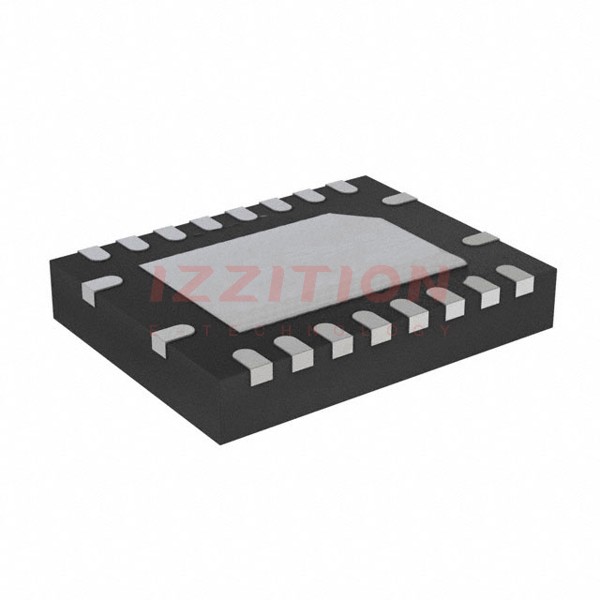

| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 28-VFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (4.5x3.5) | 20-TQFN (4.5x3.5) | 28-TQFN (3.5x5.5) | 20-TQFN (4.5x3.5) |
