| Part Number | PI6CFGL601BZHIEX | PI6CFGL401BZHIEX | PI6CFGL601BZHIE |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Discontinued at Digi-Key |
| PLL | Yes | Yes | Yes |
| Main Purpose | PCI Express (PCIe) | PCI Express (PCIe), Clock Generator | PCI Express (PCIe) |
| Input | LVDS, Crystal | LVCMOS, Crystal | LVDS, Crystal |
| Output | HCSL, LVDS | HCSL, LVCMOS | HCSL, LVDS |
| Number of Circuits | 1 | 1 | 1 |
| Ratio - Input:Output | 1:6 | 1:4 | 1:6 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 100MHz | 100MHz | 100MHz |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

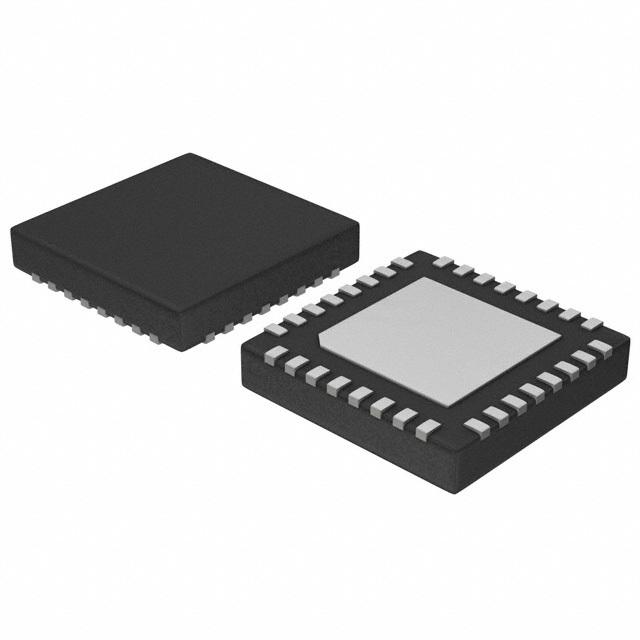

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) |
