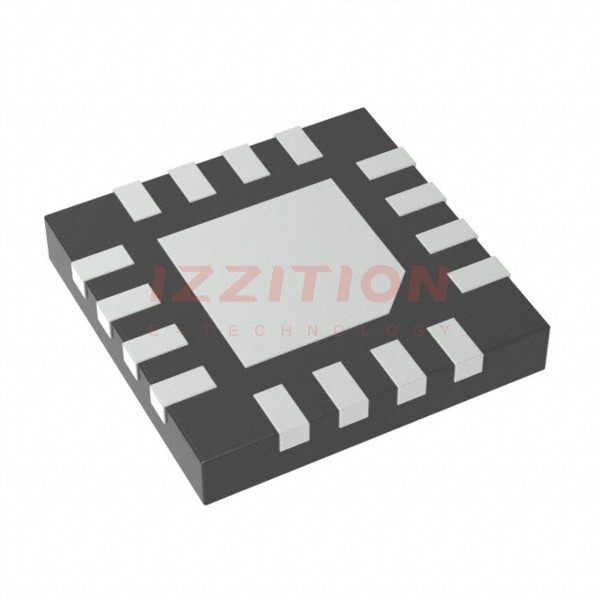

| Part Number | PI5USB2546ZHDEX | PI5USB2546ZHEX | PI5USB2546HZHDEX |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Switch Type | USB Switch | USB Switch | USB Switch |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 2.5A | 2.5A | 2.5A |
| Rds On (Typ) | 73mOhm | 73mOhm | 73mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 16-UQFN (3x3) | 16-TQFN (3x3) | 16-UQFN (3x3) |
| Package / Case | 16-UFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-UFQFN Exposed Pad |
