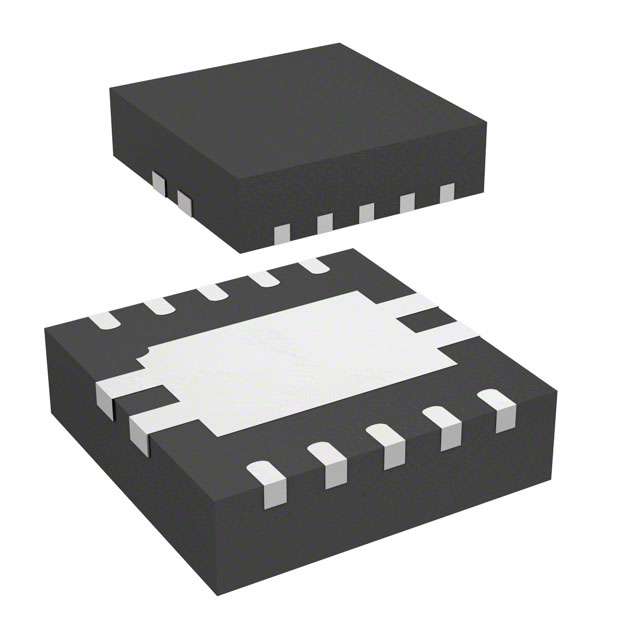

| Part Number | PI5PD2560ZEE | PI5PD2560ZEEX | PI5PD2561ZEE |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Type | USB Switch | USB Switch | USB Switch |
| Number of Outputs | 2 | 2 | 2 |
| Ratio - Input:Output | 1:2 | 1:2 | 1:2 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N/P-Channel | N/P-Channel | N/P-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| Current - Output (Max) | 2.5A | 2.5A | 2.5A |
| Rds On (Typ) | 44mOhm | 44mOhm | 44mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) |
| Package / Case | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
