PI5A4684GAEX
  • Share:

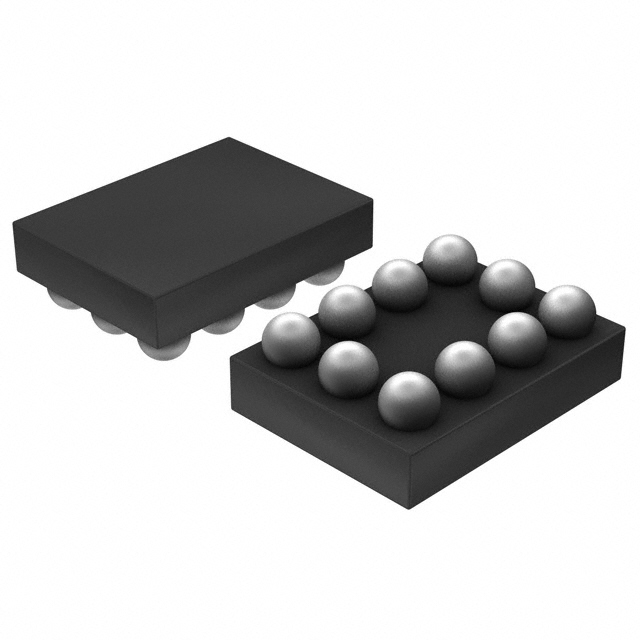

Diodes Incorporated PI5A4684GAEX

Manufacturer No:
PI5A4684GAEX
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Datasheet:
PI5A4684GAEX Datasheet
ECAD Model:
-
Description:
IC SWITCH DUAL SPDT 10CSP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:2
On-State Resistance (Max):600mOhm
Channel-to-Channel Matching (ΔRon):10mOhm
Voltage - Supply, Single (V+):1.8V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):60ns, 20ns
-3db Bandwidth:27MHz
Charge Injection:54pC
Channel Capacitance (CS(off), CD(off)):84pF
Current - Leakage (IS(off)) (Max):80nA
Crosstalk:-70dB @ 100kHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:10-WFBGA, CSPBGA
Supplier Device Package:10-CSP (2.07x1.55)
0 Remaining View Similar

In Stock

-
18

Please send RFQ , we will respond immediately.
