PI5A3157BZUEX
  • Share:

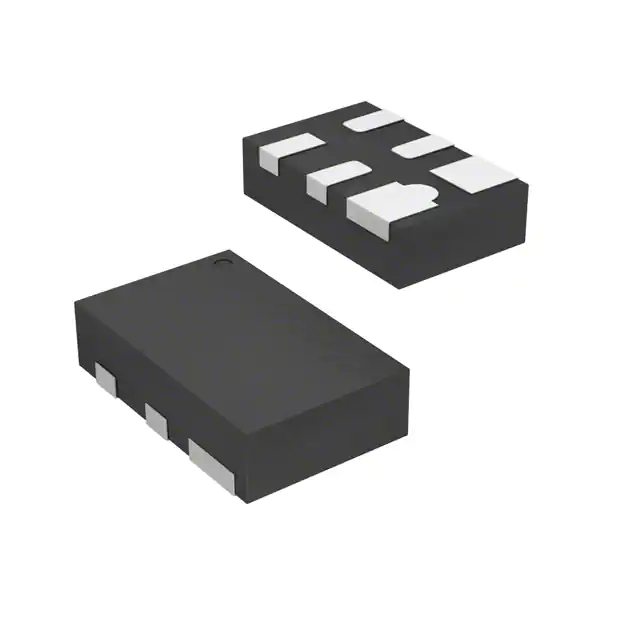

Diodes Incorporated PI5A3157BZUEX

Manufacturer No:
PI5A3157BZUEX
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Datasheet:
PI5A3157BZUEX Datasheet
ECAD Model:
-
Description:
IC SWITCH CMOS SPDT UDFN-6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:1
On-State Resistance (Max):13Ohm
Channel-to-Channel Matching (ΔRon):150mOhm
Voltage - Supply, Single (V+):1.65V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):5.2ns, 3.5ns
-3db Bandwidth:250MHz
Charge Injection:7pC
Channel Capacitance (CS(off), CD(off)):2.3pF
Current - Leakage (IS(off)) (Max):100nA
Crosstalk:-54dB @ 10MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:6-UFDFN
Supplier Device Package:6-UDFN (1x1)
0 Remaining View Similar

In Stock

-
11

Please send RFQ , we will respond immediately.
