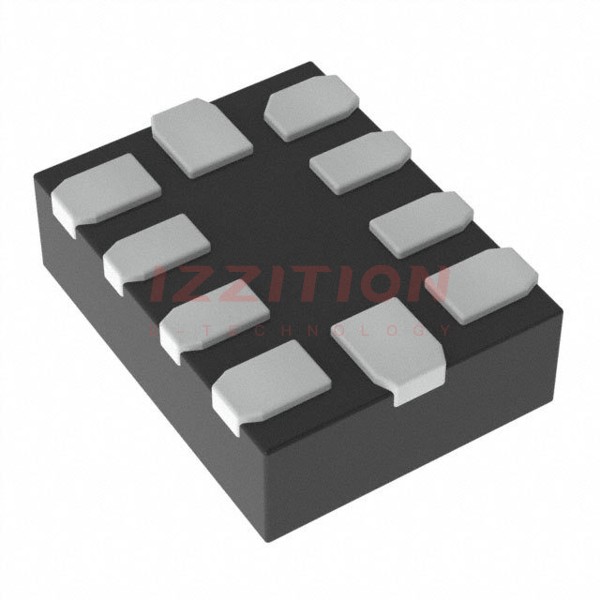

| Part Number | PI3USB4000AZUAEX | PI3USB4000BZUAEX |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Obsolete |
| Switch Circuit | - | SPDT |
| Multiplexer/Demultiplexer Circuit | 1:2 | 2:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 8Ohm | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 6V | 2.7V ~ 6V |
| Voltage - Supply, Dual (V±) | - | ±2.7V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 100µs, 50ns (Typ) | 100µs, 50ns (Typ) |
| -3db Bandwidth | 1GHz | 1GHz |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 9pF | 5pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 1µA | 1µA |
| Crosstalk | -35dB @ 240MHz | -35dB @ 240MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.5x2) | 10-UQFN (1.5x2) |
