Please send RFQ , we will respond immediately.

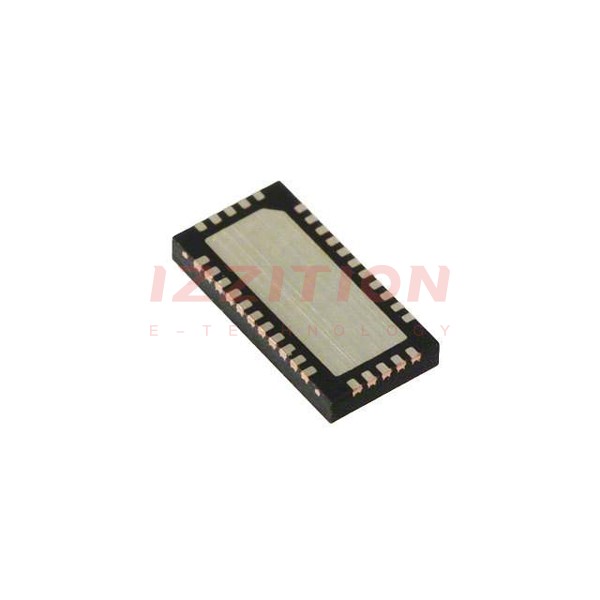

| Part Number | PI3DPX1203BZLE | PI3DPX1203BZLEX | PI3DPX1203BZHE |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete |
| Type | Buffer, ReDriver | Buffer, ReDriver | Buffer, ReDriver |
| Applications | DisplayPort | DisplayPort | DisplayPort |
| Input | DisplayPort | DisplayPort | DisplayPort |
| Output | DisplayPort | DisplayPort | DisplayPort |
| Data Rate (Max) | 8.1Gbps | 8.1Gbps | 8.1Gbps |
| Number of Channels | 4 | 4 | 4 |
| Delay Time | - | - | - |
| Signal Conditioning | Input Equalization | Input Equalization | Input Equalization |
| Capacitance - Input | - | - | - |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Current - Supply | 243mA | 243mA | 243mA |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 42-VFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (3x6) | 32-TQFN (3x6) | 42-TQFN (9x3.5) |
