PI3A2268ZMEX
  • Share:

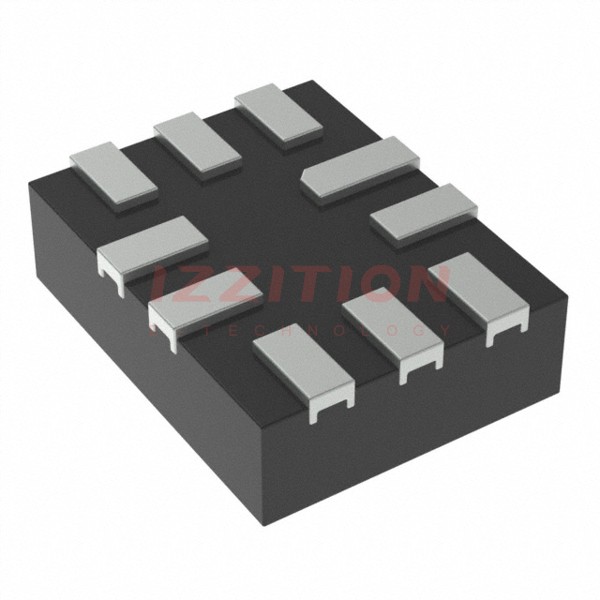

Diodes Incorporated PI3A2268ZMEX

Manufacturer No:
PI3A2268ZMEX
Manufacturer:
Diodes Incorporated
Package:
Tape & Reel (TR)
Datasheet:
PI3A2268ZMEX Datasheet
ECAD Model:
-
Description:
IC SWITCH DUAL SPDT 135QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:2
On-State Resistance (Max):750mOhm
Channel-to-Channel Matching (ΔRon):50mOhm
Voltage - Supply, Single (V+):1.65V ~ 4.2V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):13ns, 12ns
-3db Bandwidth:84MHz
Charge Injection:50pC
Channel Capacitance (CS(off), CD(off)):20pF
Current - Leakage (IS(off)) (Max):1µA
Crosstalk:-110dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:10-UFQFN
Supplier Device Package:10-UQFN (1.4x1.8)
0 Remaining View Similar

In Stock

-
322

Please send RFQ , we will respond immediately.
