Please send RFQ , we will respond immediately.
| Part Number | PI2EQX5804CNJEX | PI2EQX5804DNJEX | PI2EQX5804CNJE |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Buffer, ReDriver | Buffer, ReDriver | Buffer, ReDriver |
| Applications | PCIe | PCIe | PCIe |
| Input | CML | CML | CML |
| Output | CML | CML | CML |
| Data Rate (Max) | 5Gbps | 5Gbps | 5Gbps |
| Number of Channels | 4 | 4 | 8 |
| Delay Time | 750ps | 750ps | - |
| Signal Conditioning | Input Equalization, Output De-Emphasis | Input Equalization, Output De-Emphasis | Input Equalization, Output De-Emphasis |
| Capacitance - Input | 50 pF | 50 pF | 50 pF |
| Voltage - Supply | 1.2V | 1.2V | 1.15V ~ 1.25V |
| Current - Supply | 800mA | 800mA | 800mA |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

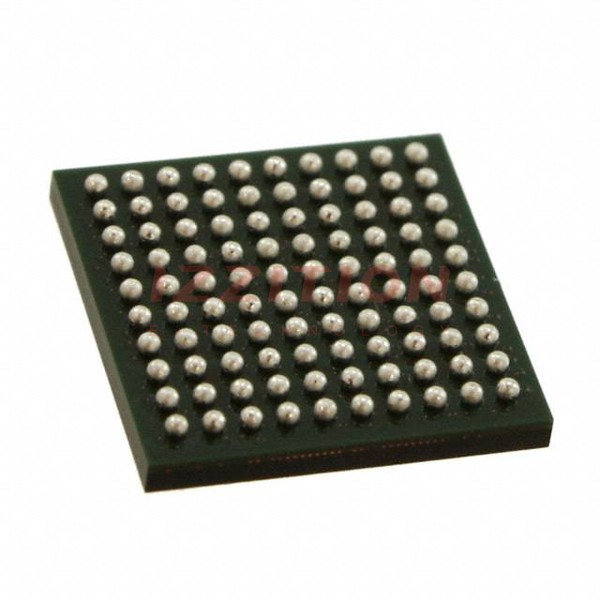

| Package / Case | 100-LBGA | 100-LBGA | 100-LBGA |
| Supplier Device Package | 100-LBGA (11x11) | 100-LBGA (11x11) | 100-LBGA (11x11) |
