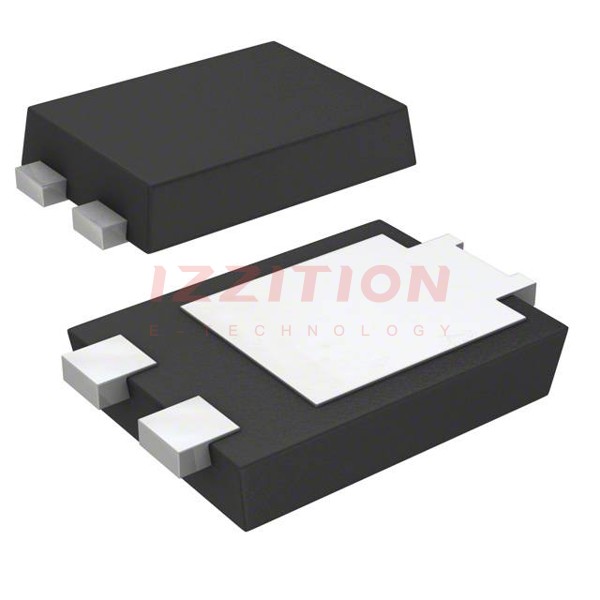

Diodes Incorporated-PDS835L-7 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	35 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	510 mV @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1.4 mA @ 35 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	PowerDI™ 5
Supplier Device Package:	PowerDI™ 5
Operating Temperature - Junction:	-65°C ~ 125°C

Diodes Incorporated PDS835L-7
