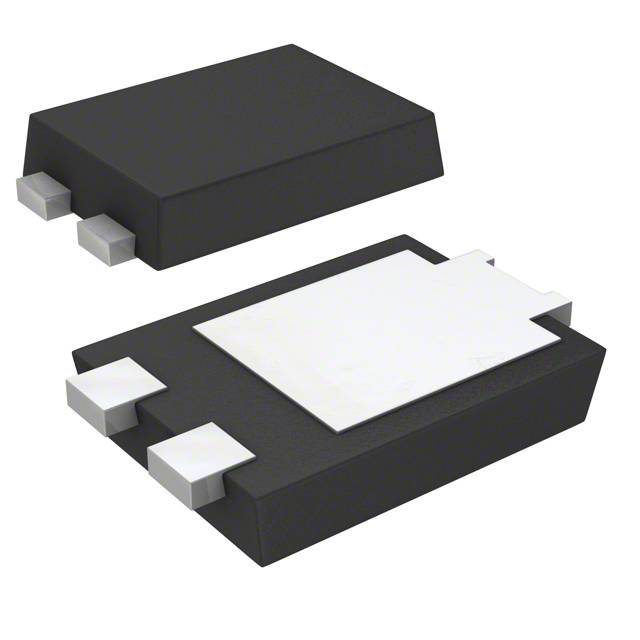

| Part Number | PDS540-13 | PDS560-13 | PDU540-13 | PDS540Q-13 | PDS540-13D | PDS340-13 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Standard | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 60 V | 400 V | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 5A | 5A | 5A | 5A | 5A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 520 mV @ 5 A | 670 mV @ 5 A | 1.185 V @ 5 A | 520 mV @ 5 A | 520 mV @ 5 A | 490 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | 35 ns | - | - | - |
| Current - Reverse Leakage @ Vr | 250 µA @ 40 V | 150 µA @ 60 V | 10 µA @ 400 V | 250 µA @ 40 V | 250 µA @ 40 V | 500 µA @ 40 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 |
| Supplier Device Package | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 | PowerDI™ 5 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
