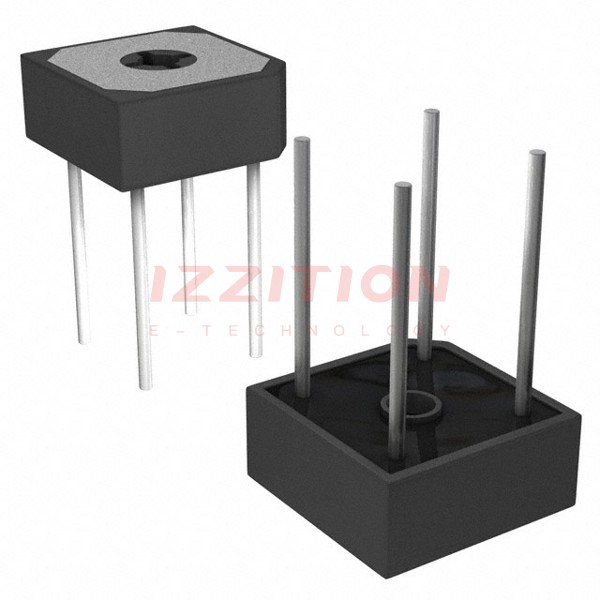

Diodes Incorporated-PBPC805 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	PBPC805	PBPC806	PBPC807	PBPC605	PBPC801	PBPC802	PBPC803	PBPC804
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	800 V	1 kV	600 V	50 V	100 V	200 V	400 V
Current - Average Rectified (Io)	6 A	6 A	6 A	4 A	6 A	6 A	6 A	6 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 4 A	1.1 V @ 4 A	1.1 V @ 4 A	1.1 V @ 3 A	1.1 V @ 4 A	1.1 V @ 4 A	1.1 V @ 4 A	1.1 V @ 4 A
Current - Reverse Leakage @ Vr	10 µA @ 600 V	10 µA @ 800 V	10 µA @ 1000 V	10 µA @ 600 V	10 µA @ 50 V	10 µA @ 100 V	10 µA @ 200 V	10 µA @ 400 V
Operating Temperature	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-Square, PBPC-8	4-Square, PBPC-8	4-Square, PBPC-8	4-Square, PBPC-6	4-Square, PBPC-8	4-Square, PBPC-8	4-Square, PBPC-8	4-Square, PBPC-8
Supplier Device Package	PBPC-8	PBPC-8	PBPC-8	PBPC-6	PBPC-8	PBPC-8	PBPC-8	PBPC-8

Diodes Incorporated PBPC805

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	6 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 4 A
Current - Reverse Leakage @ Vr:	10 µA @ 600 V
Operating Temperature:	-65°C ~ 125°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Square, PBPC-8
Supplier Device Package:	PBPC-8
