Diodes Incorporated-PBPC606 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	PBPC606	PBPC607	PBPC806	PBPC601	PBPC602	PBPC603	PBPC604	PBPC605
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	800 V	1 kV	800 V	50 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	4 A	4 A	6 A	4 A	4 A	4 A	4 A	4 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 3 A	1.1 V @ 3 A	1.1 V @ 4 A	1.1 V @ 3 A	1.1 V @ 3 A	1.1 V @ 3 A	1.1 V @ 3 A	1.1 V @ 3 A
Current - Reverse Leakage @ Vr	10 µA @ 800 V	10 µA @ 1000 V	10 µA @ 800 V	10 µA @ 50 V	10 µA @ 100 V	10 µA @ 200 V	10 µA @ 400 V	10 µA @ 600 V
Operating Temperature	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)	-65°C ~ 125°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-Square, PBPC-6	4-Square, PBPC-6	4-Square, PBPC-8	4-Square, PBPC-6	4-Square, PBPC-6	4-Square, PBPC-6	4-Square, PBPC-6	4-Square, PBPC-6
Supplier Device Package	PBPC-6	PBPC-6	PBPC-8	PBPC-6	PBPC-6	PBPC-6	PBPC-6	PBPC-6

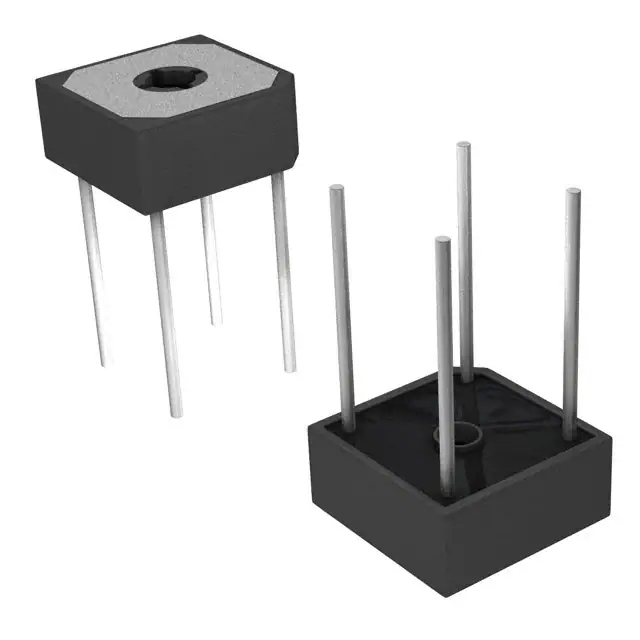

Diodes Incorporated PBPC606

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	800 V
Current - Average Rectified (Io):	4 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 3 A
Current - Reverse Leakage @ Vr:	10 µA @ 800 V
Operating Temperature:	-65°C ~ 125°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Square, PBPC-6
Supplier Device Package:	PBPC-6
