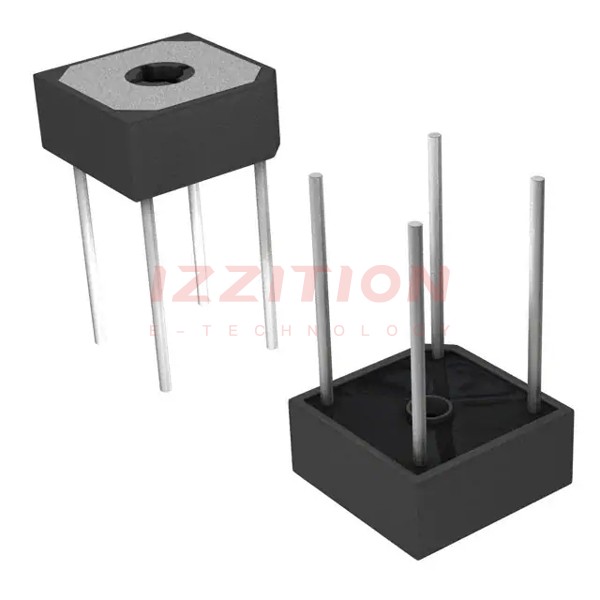

| Part Number | PBPC603 | PBPC604 | PBPC605 | PBPC606 | PBPC607 | PBPC803 | PBPC601 | PBPC602 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 200 V | 400 V | 600 V | 800 V | 1 kV | 200 V | 50 V | 100 V |
| Current - Average Rectified (Io) | 4 A | 4 A | 4 A | 4 A | 4 A | 6 A | 4 A | 4 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A | 1.1 V @ 3 A | 1.1 V @ 3 A | 1.1 V @ 3 A | 1.1 V @ 3 A | 1.1 V @ 4 A | 1.1 V @ 3 A | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V | 10 µA @ 400 V | 10 µA @ 600 V | 10 µA @ 800 V | 10 µA @ 1000 V | 10 µA @ 200 V | 10 µA @ 50 V | 10 µA @ 100 V |
| Operating Temperature | -65°C ~ 125°C (TJ) | -65°C ~ 125°C (TJ) | -65°C ~ 125°C (TJ) | -65°C ~ 125°C (TJ) | -65°C ~ 125°C (TJ) | -65°C ~ 125°C (TJ) | -65°C ~ 125°C (TJ) | -65°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-Square, PBPC-6 | 4-Square, PBPC-6 | 4-Square, PBPC-6 | 4-Square, PBPC-6 | 4-Square, PBPC-6 | 4-Square, PBPC-8 | 4-Square, PBPC-6 | 4-Square, PBPC-6 |
| Supplier Device Package | PBPC-6 | PBPC-6 | PBPC-6 | PBPC-6 | PBPC-6 | PBPC-8 | PBPC-6 | PBPC-6 |
