Diodes Incorporated-PB62 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	PB62	PB64	PB66	PB68	PB61
Manufacturer	Diodes Incorporated	Diodes Incorporated	Micro Commercial Co	Micro Commercial Co	Diodes Incorporated
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	200 V	400 V	600 V	800 V	100 V
Current - Average Rectified (Io)	6 A	6 A	6 A	6 A	6 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 3 A	1.1 V @ 3 A	1.1 V @ 3 A	1.1 V @ 3 A	1.1 V @ 3 A
Current - Reverse Leakage @ Vr	10 µA @ 200 V	10 µA @ 400 V	10 µA @ 600 V	10 µA @ 800 V	10 µA @ 100 V
Operating Temperature	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-Square, PB-6	4-Square, PB-6	4-Square, PB-6	4-Square, PB-6	4-Square, PB-6
Supplier Device Package	PB-6	PB-6	PB-6	PB-6	PB-6

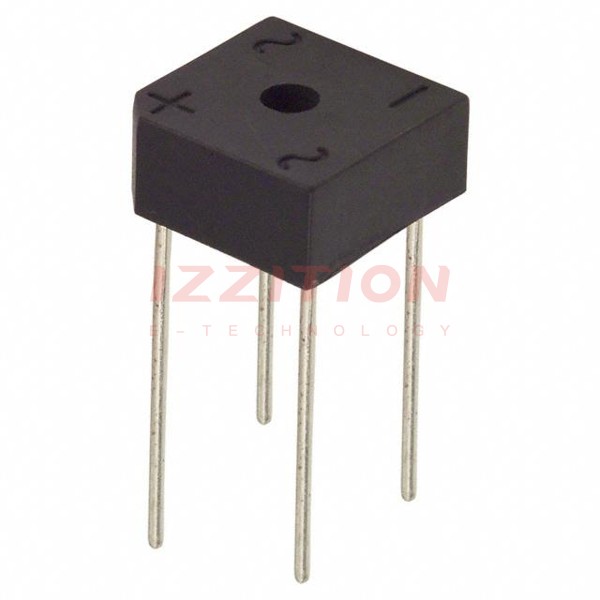

Diodes Incorporated PB62

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	200 V
Current - Average Rectified (Io):	6 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 3 A
Current - Reverse Leakage @ Vr:	10 µA @ 200 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Square, PB-6
Supplier Device Package:	PB-6
