PAM3101FKF285
  • Share:

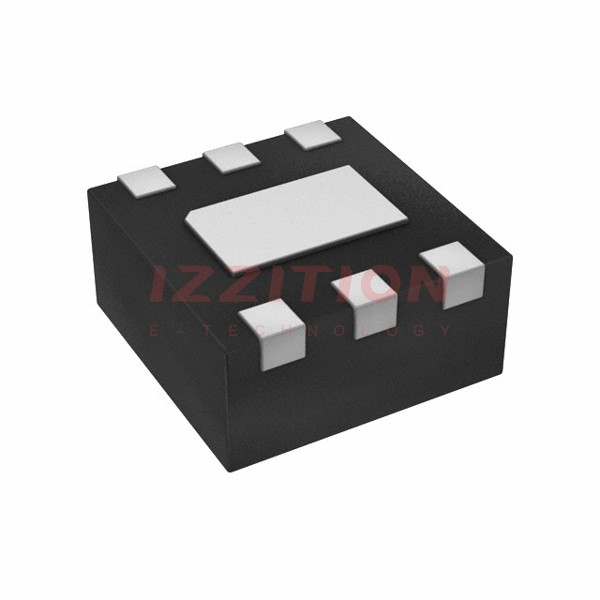

Diodes Incorporated PAM3101FKF285

Manufacturer No:
PAM3101FKF285
Manufacturer:
Diodes Incorporated
Package:
Bulk
Datasheet:
PAM3101FKF285 Datasheet
ECAD Model:
-
Description:
IC REG LINEAR 2.85V 300MA 6DFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):2.85V
Voltage - Output (Max):-
Voltage Dropout (Max):0.45V @ 300mA
Current - Output:300mA
Current - Quiescent (Iq):90 µA
Current - Supply (Max):90 µA
PSRR:70dB ~ 65dB (100Hz ~ 1kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:6-WFDFN Exposed Pad
Supplier Device Package:6-DFN (1.6x1.6)
0 Remaining View Similar

In Stock

-
295

Please send RFQ , we will respond immediately.

Similar Products

Part Number PAM3101FKF285 PAM3101FKF280
Manufacturer Diodes Incorporated Diodes Incorporated
Product Status Obsolete Obsolete
Output Configuration Positive Positive
Output Type Fixed Fixed
Number of Regulators 1 1
Voltage - Input (Max) 5.5V 5.5V
Voltage - Output (Min/Fixed) 2.85V 2.8V
Voltage - Output (Max) - -
Voltage Dropout (Max) 0.45V @ 300mA 0.45V @ 300mA
Current - Output 300mA 300mA
Current - Quiescent (Iq) 90 µA 90 µA
Current - Supply (Max) 90 µA 90 µA
PSRR 70dB ~ 65dB (100Hz ~ 1kHz) 70dB ~ 65dB (100Hz ~ 1kHz)
Control Features Enable Enable
Protection Features Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Surface Mount Surface Mount
Package / Case 6-WFDFN Exposed Pad 6-WFDFN Exposed Pad
Supplier Device Package 6-DFN (1.6x1.6) 6-DFN (1.6x1.6)
