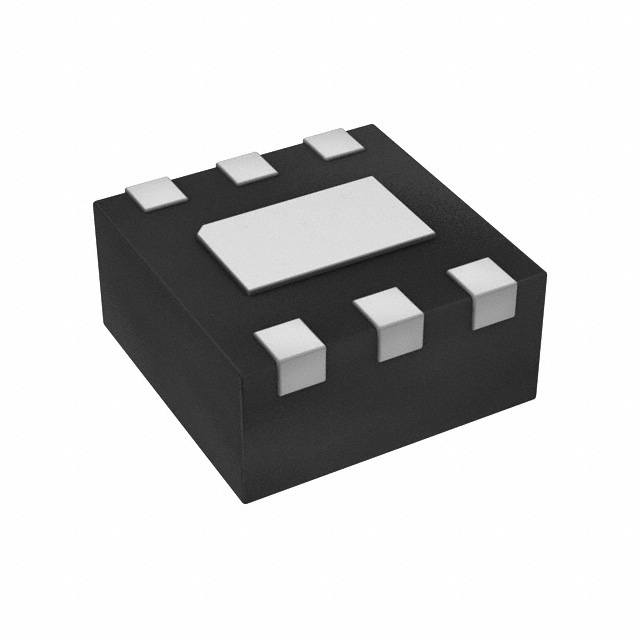

| Part Number | PAM3101FKF180 | PAM3101FKF280 | PAM3101FKF380 | PAM3101FKF150 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 2.8V | 3.8V | 1.5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 1.1V @ 300mA | 0.45V @ 300mA | 0.23V @ 300mA | 1.4V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 90 µA | 90 µA | 90 µA | 90 µA |
| Current - Supply (Max) | - | 90 µA | 90 µA | 90 µA |
| PSRR | - | 70dB ~ 65dB (100Hz ~ 1kHz) | 70dB ~ 65dB (100Hz ~ 1kHz) | 70dB ~ 65dB (100Hz ~ 1kHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (1.6x1.6) | 6-DFN (1.6x1.6) | 6-DFN (1.6x1.6) | 6-DFN (1.6x1.6) |
