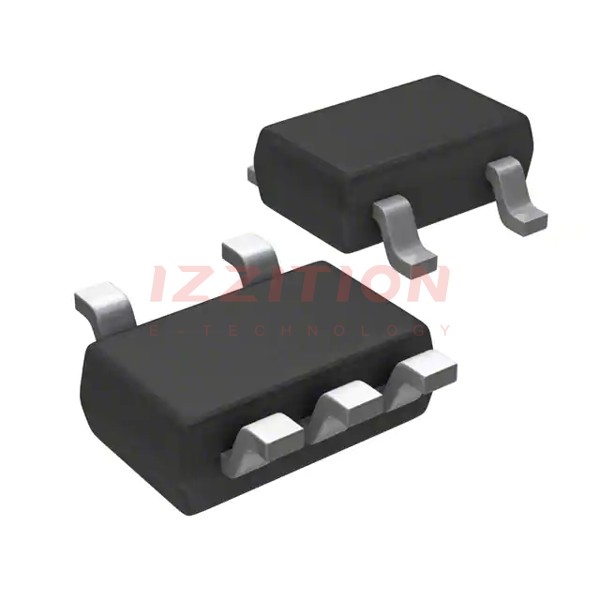

PAM3101DUB280
  • Share:

Diodes Incorporated PAM3101DUB280

Manufacturer No:
PAM3101DUB280
Manufacturer:
Diodes Incorporated
Package:
Bulk
Datasheet:
PAM3101DUB280 Datasheet
ECAD Model:
-
Description:
IC REG LINEAR 2.8V 300MA SC70-5
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):2.8V
Voltage - Output (Max):-
Voltage Dropout (Max):0.45V @ 300mA
Current - Output:300mA
Current - Quiescent (Iq):90 µA
Current - Supply (Max):90 µA
PSRR:70dB ~ 65dB (100Hz ~ 1kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:SC-70-5
0 Remaining View Similar

In Stock

-
300

Please send RFQ , we will respond immediately.

Similar Products

Part Number PAM3101DUB280 PAM3101DAB280   PAM3101DUB180
Manufacturer Diodes Incorporated Diodes Incorporated Diodes Incorporated
Product Status Obsolete Obsolete Obsolete
Output Configuration Positive Positive Positive
Output Type Fixed Fixed Fixed
Number of Regulators 1 1 1
Voltage - Input (Max) 5.5V 5.5V 5.5V
Voltage - Output (Min/Fixed) 2.8V 2.8V 1.8V
Voltage - Output (Max) - - -
Voltage Dropout (Max) 0.45V @ 300mA 0.45V @ 300mA 1.1V @ 300mA
Current - Output 300mA 300mA 300mA
Current - Quiescent (Iq) 90 µA 90 µA 90 µA
Current - Supply (Max) 90 µA - 90 µA
PSRR 70dB ~ 65dB (100Hz ~ 1kHz) - 70dB ~ 65dB (100Hz ~ 1kHz)
Control Features Enable Enable Enable
Protection Features Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 5-TSSOP, SC-70-5, SOT-353 SC-74A, SOT-753 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package SC-70-5 SOT-23-5 SC-70-5
